Portable Pump Otter

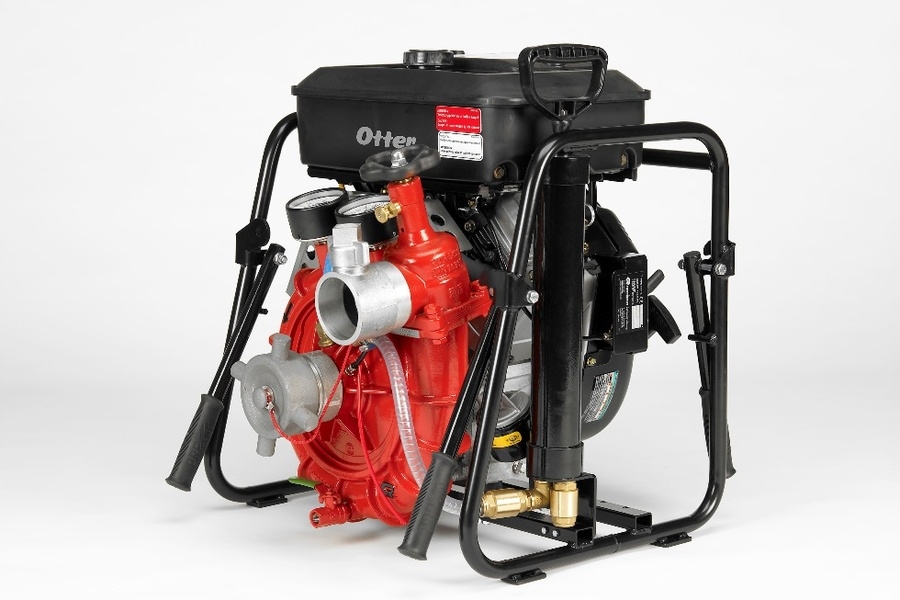

Certified as to EN 14466 for PFPN 6-500. OTTER, the light portable pump combines high pumping capacity with compact dimensions and a weight of only 66 kg. The spherical impeller is attached direct to the shaft end and together with the control device, integrated in the housing, it ensures extreme high efficiency of the pump. Priming is done by a manual piston pump

Technical data

Engine: Briggs and Stratton “Vanguard” 4-stroke 2-cylinder OHV petrol engine with manual rope recoil starter (electric starter and battery optional at extra charge). Fuel used can be either leaded or unleaded petrol

Air-cooled with fan

Pump: One-stage ROSENBAUER centrifugal fire pump made of light alloy, with manual piston priming pump for a maximum suction lift of 7.5 m

Attainable pump performance at 3 m suction lift: 500 l/ min at 6 bar, 800 l/min at 5 bar or 1,000 l/min at 4 bar

Comes with one pressure outlet with 2.5" screw down type valve

Tubular carrying frame with four swing-out type handles. Manovacuometer-1/0/25 bar, pressure gauge 0/25 bar. Standard tool kit for engine and pump.


Additional Information

Login to Unlock
Click to Register
Weight
dry 58 kg, ready for operation approx. 66 kg (tanks full)
Fuel tank
8.5 litres
Output
13 kW (18 HP) at 3,600 RPM
