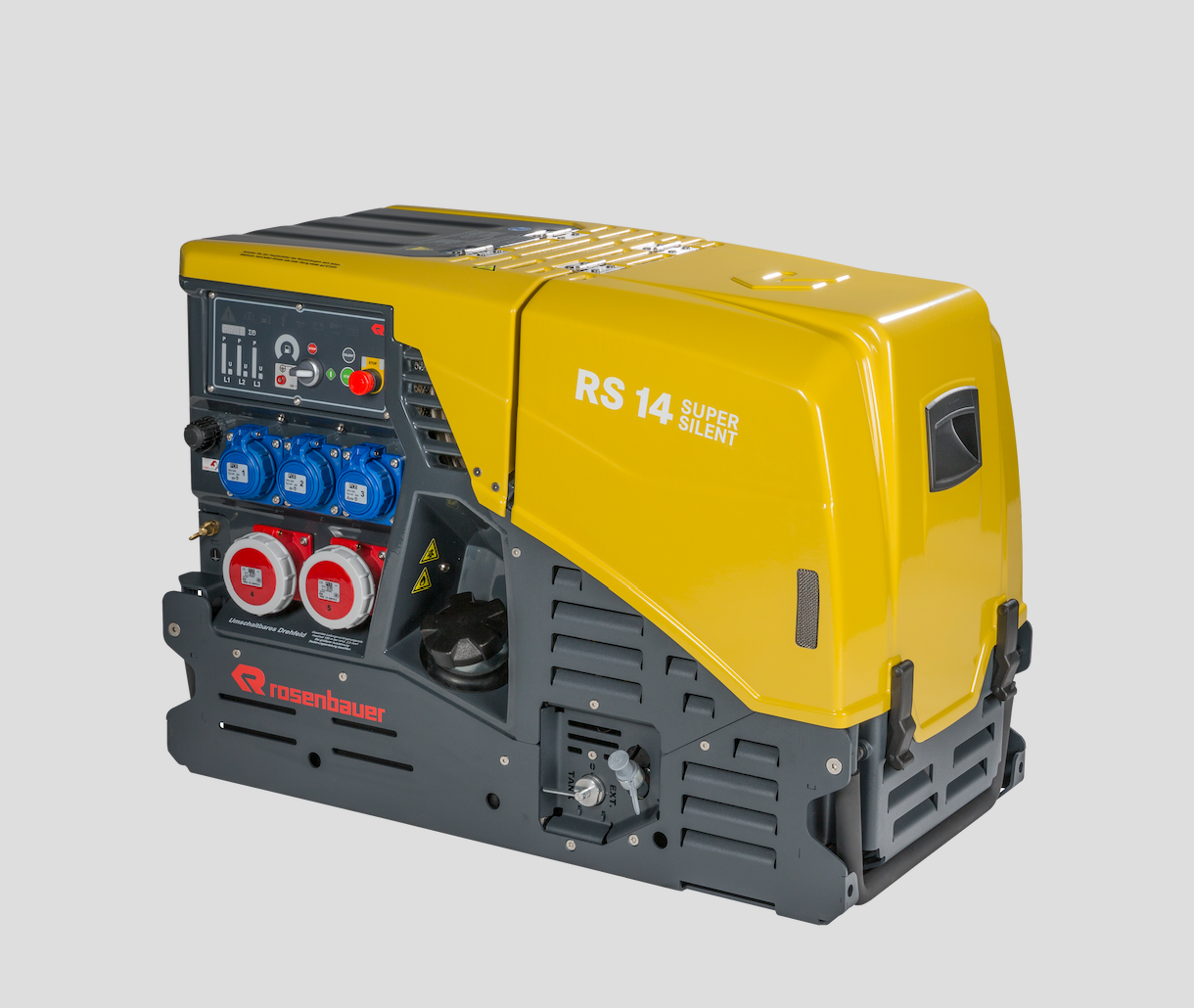

Power generator RS 14 SUPER SILENT

Innovative technology ensures an extremely low noise emission level, especially with the optional speed reducer – and without impacting its performance, functionality or safety

Noise emission optimised exhaust system

New air intake system developed from scratch

LED illumination of the soc

kets and tank filling area provides additional safety in operating the generator Premium quality finish coupled with technological excellence

Complete fibreglass reinforced plastic encapsulation of the RS 14 SUPER SILENT is one of the details that guarantees an extremely low operating noise level

Application For fire brigades or users requiring high grade protection

External power supply 12 V socket for connection to a vehicle

Control box

Features 2 x Watertight sockets 400 V

3 x Watertight sockets 230 V

1 x Circuit breaker 16 A 3-pole with neutral wire and monitoring

3 x Circuit breakers 16 A 1-pole with neutral wire and monitoring

1 x CAN BUS-socket FIRECAN 7-pole (battery charging and remote monitoring)

Accessories

Tool kit 2 Spark plugs, 1 spark plug spanner, 1 screw driver, 1 test lead with test probes

User information With CE conformity declaration, spare part list and circuit plan


Additional Information

Login to Unlock
Click to Register
Type
RS 14 SUPER SILENT
Order Number
571579-002
Colour
yellow / anthracite
Unit Dimensions
820 x 440 x 580 mm (DIN - 8- frame)
Unit Weight
150 kg (including tank filling for 1.5 h of operation) 156 kg (including tank filling for 1.5 h of operation)
Unit Output
Pel, 3~ = 13.6 kVA / cos ¬ = 0.8 / 10.88 kW Pel, 1~ = 4.5 kVA / cos ¬ = 0.8 / 3.6 kW ¢ Pel, 1~ = 3 x 4.5 kVA = 13.6 kVA
Unit Rated current
19.7 A 3~ / 29.6 A 1~
Unit Circuit breaker
16 A 3~ / 16 A 1~
Specification
ÖBFV-RL ET-01, DIN 14685-1
Unit Noise Level
LWA 92 dB(A) (speed reduction on) 88 dB(A) (speed reduction on)
Unit Acoustic Pressure
(10 m, idle) 62 dB(A) (speed reduction on) 58 dB(A) (speed reduction on)
Unit Protection Class
IP 54
Unit Tank Capacity
12.5 l
Unit Operational Period at Full Load
Approx. 2 h
Unit Colour
RAL 3000 (red) or RAL 1012 (yellow)
Generator Type
Type Synchronous generator with electronic controller
Generator Voltage
230 / 400 V
Generator Voltage constancy
+/- 5 %
Generator Frequency
50 Hz
Generator Power Factor Cos ¬
= 0.8
Generator Rated Current
20.3 A 3~ / 30.4 A 1~
Engine Manufacturer
Briggs & Stratton Corporation USA
Engine Model
22 PS Vanguard
Engine Type
2-cylinder OHV 4-stroke petrol engine, cool cleaner
Engine Type of Control
+/- 5 %
Ignition Electronic Fuel
Lead-free, min. 91 ROZ petrol
Ignition Electronic Exhaust gases
Fulfils the 2002/88 EC exhaust gas standard
Ignition Electronic Consumption
Approx. 6 l/h at full load
Ignition Electronic Features
Recoil starter, 12 V electro starter, with battery (available as an option), oil pressure warning (does not stop the engine)
Engine Type
2-cylinder OHV 4-stroke petrol engine, cool cleaner
Engine Type of Control
+/- 5 %
Engine Model
22 PS Vanguard
Engine Type
2-cylinder OHV 4-stroke petrol engine, cool cleaner
Engine Type of Control
+/- 5 %
