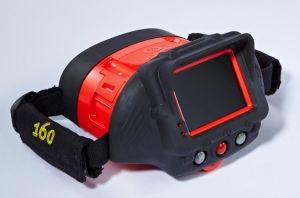

Thermal Imaging ARGUS 4-160 LITE


Additional Information

Dimensions (HxWxD)
Without handle: 130 x 185 x 185 mm / with handle: 295 x 185 x 185 mm
Weight
incl. rechargeable battery Without handle: 1.58 kg / with handle: 1.74 kg
Battery useful life
> 4 hours at continuous usage
Dust and splash water
IP 67
Storage temperature
-10 °C to +40 °C
Vibration and shock
BS EN 60721-3-2, class 2M3
Lense Germanium
Refresh rate
120 Hz 60 Hz
Spectral sensitivity
8 to 14 μm
Minimum temperature
0.07 °C 0.045 °C
Ambient temperature Measurement
-15 °C to +150 °C
Storage temperature
-10 °C to +40 °C
Sensor resolution 160 x 120 pixels 320 x 240 pixels

Spot temperature Measurement from 0 °C to +800 °C Measurement from -40 °C to +1,000 °C

PC connection Via RS232-lead (supplied) with USB-connection
