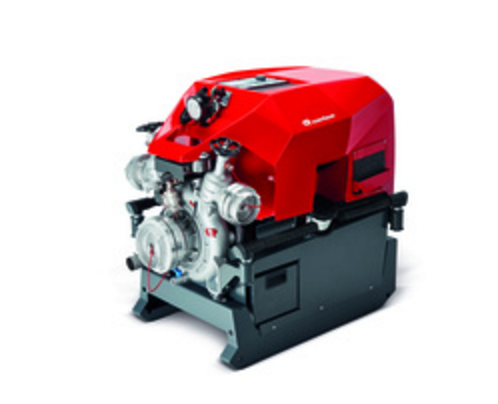

portable pump FOX S

The completely new developed FOX S portable pump is an impressive new class between FOX and BEAVER. Ist high Output of more than 1,000 l/min at 10 bar (264 US gal at 145 psi) according to EN 14466, in Addition to its small width of 640 mm (2 ft) enables completely new applications.

The engine is a 2-cylinder in-line engine optimized for use in the most adverse weather conditions, thus guaranteeing the best operational safety. Suction occurs using an optimized Piston priming pump that is switched by way of magnetic coupling.


Additional Information

Login to Unlock
Click to Register
Standard test
PFPN 10-1000
Flow rate
1,050 l/min at 10 bar (277 gpm at 145 psi) 2,000 l/min at 3 bar (528 gpm at 43 psi)
Drive engine
BRP Rotax R2 cylinder 4-stroke engine, 29 kW Output
Pump
Single-stage, lightweight alloy centrifugal pump, curved impeller blades and diffuser with spiral housing
Priming pump
Piston priming pump automatic control
Dimensions
926 mm x 636 mm x 845 mm (36,45 in x 25,04 in x 33,27 in)
Weight
Ready to operate: 150 kg (330 lb)
