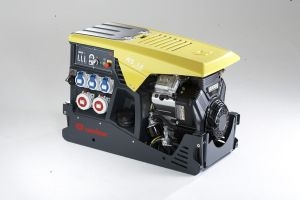

Power Generator_RS 14

General information

Application For fire brigades or users requiring high grade protection

External power supply 12 V socket for connection to a vehicle

The power generators RS 14 sets new standards with regard to functionality, performance and above all safety standards

Increased safety:

Low-mounted tank

Ergonomically positioned, large filling opening (separated, low risk during filling and refilling) Safety tank lock

Protected tank in a high-strength aluminium frame

Greatly reduced thermal impact

Optical and acoustical warnings

The RS 14 generator is fitted with a 3-way fuel tap as a standard equipment. This allows for continuous operation with fuel cans - another contribution towards improving safety and functionality during operations. (The fuel-filling attachment and cans are not included in the scope of delivery


Additional Information

Login to Unlock
Click to Register
Type
RS 14
Order Number
576903-002
Colour
yellow / anthracite
Unit Dimensions
820 x 440 x 580 mm (DIN - 8- frame)
Unit Weight
150 kg (including tank filling for 1.5 h of operation) 156 kg (including tank filling for 1.5 h of operation)
Unit Output
3~ = 13.6 kVA / cos ¬ = 0.8 / 10.88 Kw Pel, 1~ = 4.5 kVA / cos ¬ = 0.8 / 3.6 kW ¢ Pel, 1~ = 3 x 4.5 kVA = 13.6 kVA
Unit Rated current
19.7 A 3~ / 29.6 A 1~
Unit Circuit breaker
16 A 3~ / 16 A 1~
Specification
ÖBFV-RL ET-01, DIN 14685-1
Unit Noise Level
LWA 92 dB(A) (speed reduction on) 88 dB(A) (speed reduction on)
Unit Acoustic Pressure
(10 m, idle) 62 dB(A) (speed reduction on) 58 dB(A) (speed reduction on)
Unit Operational Period at Full Load
Approx. 2 h
Unit Colour
RAL 3000 (red) or RAL 1012 (yellow)
Generator Type
Type Synchronous generator with electronic controller
Generator Voltage
230 / 400 V
Generator Voltage constancy
+/- 5 %
Generator Frequency
50 Hz
Generator Power Factor Cos ¬
= 0.8
Generator Rated Current
20.3 A 3~ / 30.4 A 1~
